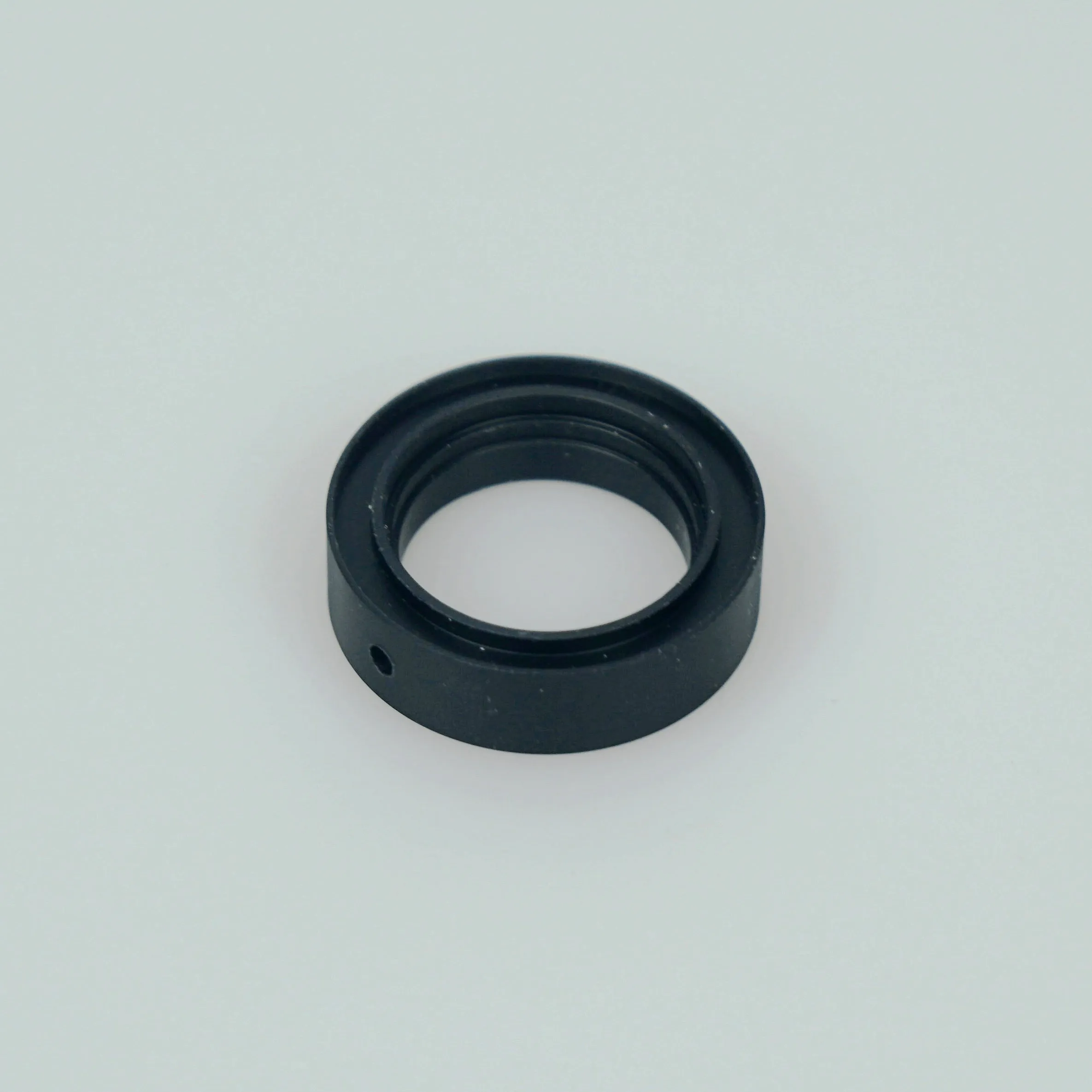

Here is the ShtokCustomWorx NPXL V3/V4 LED Strip PCB Holder.

This is the hilt side and for 1" emitters. It is also designed for the both the long pins AND short pins.

OD: 1"

Height: 7.0mm

Please note that, for use with Long Pins, the order will include a lens cover. This is required for use with the long pins NPXL V3/V4 PCB or long pins ECO NPXL V3/V4 PCB. If you do not use a lens cover when using the long pins PCB you can risk bending or damaging your pins. You can choose from the selection above.

Machined from black ABS. It is not compatible with any third-party PCB.

This holder is MagConnect compatible when using short pins only.

Magnets are sold separately .

These are for the V3 and V4 ShtokCustomWorx NPXL PCB or ECO NPXL V3 and V4 PCB connectors.

• Long pin PCBs are sold .
• Short pin PCBs are sold .

Please note, the magnets are a snug interference fit. They will still need be glued in so the force of the magnets do not pull them out when near each other. We recommend a low viscosity CA glue for this. Be careful when doing this; the magnets are fragile.

Also, it is important to note that due to the tolerances, be sure to check the fitting of the holder inside the hilt before the magnets have been put it and after. The addition of the magnets may expand the holder slightly resulting in a tighter fit. If this is the case, we recommend lightly sanding the outside of the magnets using a sanding drum to reduce the outer diameter slightly. This will stop the holder from expanding after installing the magnets.

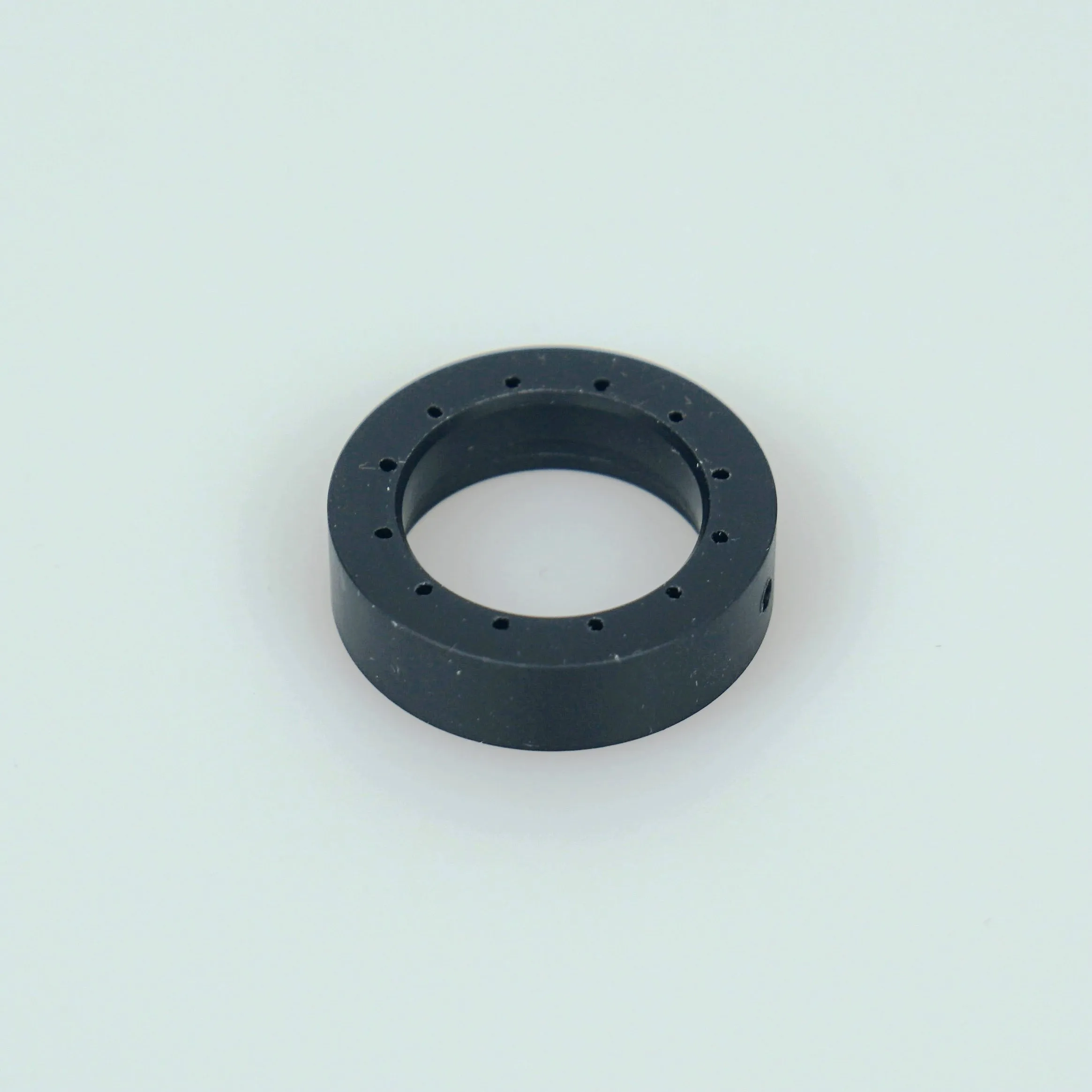

Note that the PCB is press fit but it can be further secured using a small dab of hot glue or equivalent. It does also have 2 holes on each side of the holder should you wish to tap them and secure the PCB using screws.
